PADDLE MIXER

COST EFFECTIVE-ENERGY EFFICIENT-PREMIUM QUALITY VERSATILE POWDER MIXER MACHINE

DESCRIPTION: - ARVINDA BLENDERS is the leading manufacturer, supplier, and exporter of Dry Powder Mixer or Paddle Mixer. This versatile SINGLE SHAFT PADDLE MIXER or DOUBLE SHAFT PADDLE MIXER equipment ensures outstanding quality of the mixing and produces the best homogenous mixing of dry powder or dry solid powder. The ARVINDA PADDLE MIXER is best POWDER MIXER EQUIPMENT available in the market and known for its high productivity, zero retention, noiseless and vibrationless operation.

paddle mixer manufacturer in India

WHAT IS PADDLE MIXER MACHINE AND HOW IT WORKS?

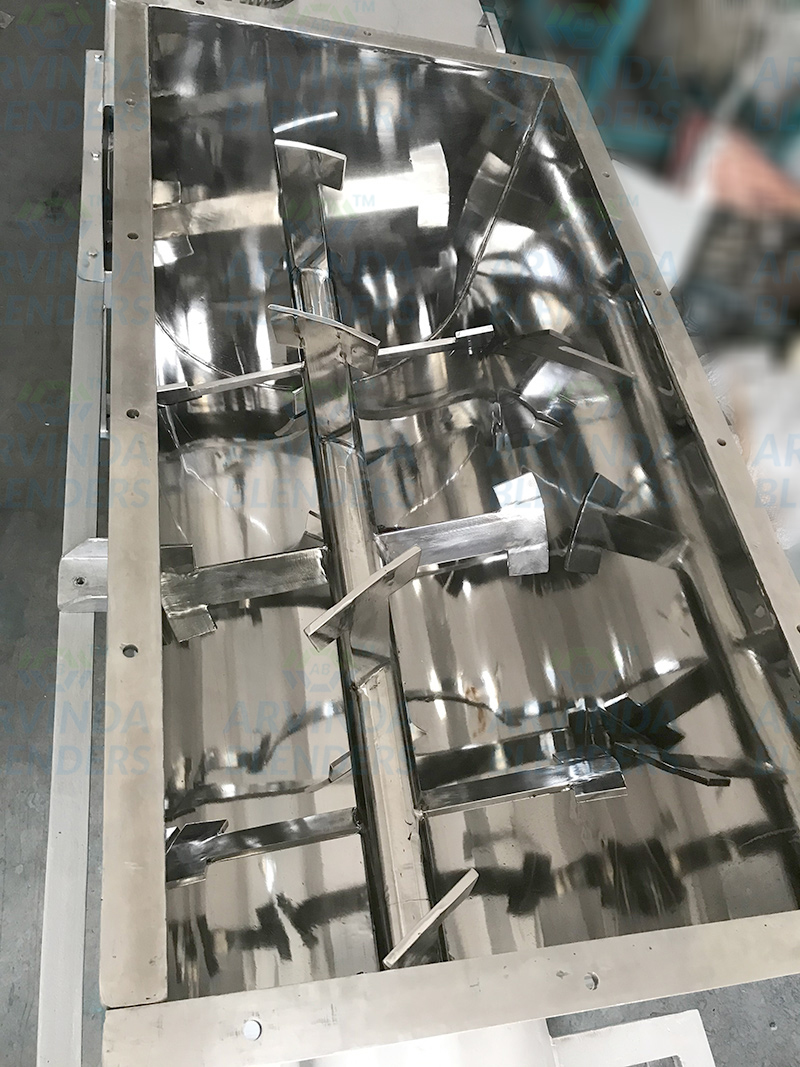

Paddle mixer is generally defined as the U shape Horizontal Type of the Mass Mixer in which specific types of the PADDLES at different degree and angles are mounted upon the horizontal agitator shaft. The Different position of PADDLES at a varied angle makes sure to give the movement to the DRY POWDER MATERIALS inside the U shape trough of the mass mixer.

PADDLES are fixed on the main horizontal agitator shaft with maintaining the minimum clearance between the U trough and the outer surface of the paddle. In fact, the internal arrangement of the paddle is also strategically done via our unique principle of creating the dynamic flow and the motion of the powder material in the U trough, while also ensuring the minimum gap and voids between the two paddle arms which also helps to lift-rotate-transfer-distribute all the dry powder material in the U shape trough uniformly.

The Paddle Type Mixer is the best suitable equipment for the homogeneous mixing of dry powder which are friable in nature and which are easily crumbled.

FOR THE HOMOGENOUS MIXING OF ACTIVE PHARMACEUTICAL INGREDIENTS, SPECIALTY CHEMICAL POWDER, FOOD, SPICES, SEASONING AND FLAVOUR POWDERS.

paddle mixer manufacturer in Mumbai, Pune and Delhi

MATERIAL OF CONSTRUCTION


CONTACT PARTS: OPTIONS

  • AISI 316 GRADE STAINLESS STEEL
  • AISI 304 GRADE STAINLESS STEEL
  • MILD CARBON STEEL

NON CONTACT PARTS: OPTIONS

  • AISI 316 GRADE STAINLESS STEEL
  • AISI 304 GRADE STAINLESS STEEL
  • MILD CARBON STEEL
paddle mixer manufacturer

SALIENT FEATURES

INDIA’S LEADING PADDLE MIXER MANUFACTURER

  • HOMOGENOUS Quality of Mixing in less time, with higher accuracy
  • Gentle Mixing Action
  • Lowest Clearance between Ribbon Blade and U Trough
  • Energy Efficient & Environment-Friendly Sanitary design
  • Zero Maintenance cost
  • Longer life of the equipment
  • Noiseless & Vibration Less Operation,
  • Ground clearance as per the requirement
  • Dustproof Top cover in two or three portions as per the requirement
  • Hopper on the Top cover for Material Feeding
  • Discharge- Manual Operated
  • Safety features like emergency shutdown and Limit switch
  • Branded Motor
  • Powerful Gear Reducer with best Service Factor and higher power transmission capabilities
  • High-Quality Control Panel with many important features for R&D

OPTIONAL FEATURES

  • DISCHARGE VALVE - Butterfly Type Valve / Ball Valve /Automatic Pneumatic Valve
  • Spraying Nozzles
  • Heating/Cooling Jacket
  • Limpet Coil for Heating & Cooling
  • High-Speed Choppers
  • Heavy Duty Variable Frequency Drive

CAPACITY AVAILABLE:
5 LITERS TO 20000 LITERS

dry powder mixing equipment manufacturer

USE AND APPLICATION OF RIBBON BLENDER

  • Specifically suitable for the friable type of Powder or materials.
  • Batch and Continuous types of dry powder mixing
  • Small Scale blending of dry solids
  • Dry Mixing and Blending of Capsule formulations
  • Uniform mixing and lubrication of dry granules at large scale batch
  • Mixing along with External Heating, cooling, and drying of raw materials
  • Coating of a minor portion of liquid materials over major dry solid powder particles.
  • Mixing of Active Pharmaceutical Ingredients, Tea-Coffee Premix, Gluten Feed, Animal Feed, Starch Powder, Bakery Items, Protein-Vitamin Supplements, plastic pellets, concrete-cement, wall putty, ceramic, rice husk ash, fly ash, talcum powder, carbon black granules, oil, paint, colorants.
